Cast Iron Surface Plate

Cast Iron Surface Plate

Cast Iron Surface Plate,also known as cast iron flat plate,can be used as a measurement benchmark for checking the flatness,parallelism,straightness and other geometric tolerances o......

CONTACT ABOUT
PRODUCT DETAILS PRODUCT DETAILS

Cast Iron Surface Plate,also known as cast iron flat plate,can be used as a measurement benchmark for checking the flatness,parallelism,straightness and other geometric tolerances of mechanical parts.It can also be used for marking and measuring parts,experiments,riveting,welding,foundations,workbenches,etc.The working surface of Cast Iron Surface Plate(flat plate)adopts scraping and grinding technology,and the working surface can be designed with circular holes,rectangular holes,square holes,T-shaped grooves,U-shaped grooves,V-shaped grooves,etc.

The Cast Iron Surface Plate is a flat reference measuring tool suitable for workpiece and equipment inspection,marking,assembly,welding,assembly,and riveting.It is widely used in industries such as mechanical manufacturing,chemical engineering,hardware,aerospace,petroleum,automotive manufacturing,and instrument manufacturing.

The appearance of the Cast Iron Surface Plate is basically box type,with rectangular,square,circular and other working surfaces.The materials are HT200-300,QT400-600,and the scraping process is used.V-shaped,T-shaped,U-shaped grooves,dovetail grooves,circular holes,long holes,etc.can be machined on the working surface.It is a flat reference measuring tool used for workpiece and equipment inspection,marking,assembly,welding,assembly,riveting and welding.

Precision of Cast Iron Surface Plate:

The Cast Iron Surface Plate is executed according to the standard metrological verification regulations,which are divided into four levels:0,1,2,and 3.

Factors affecting the performance of Cast Iron Surface Plates:

The quality of cast iron and heat treatment on the Cast Iron Surface Plate have a significant impact on the performance of the flat plate,or the working surface may deform due to residual large internal stresses;Or due to the inability to maintain accuracy;Or due to difficulty in scraping,roughness with small values cannot be obtained.Therefore,when using cast iron plates,attention should be paid to the selection of cast iron materials,and methods such as aging treatment should be used to reduce residual stress in cast iron plates.

Structural characteristics of Cast Iron Surface Plate:

Cast Iron Surface Plates are divided into ribbed plate and box type according to their structure;Divided by purpose into inspection flat plate,marking flat plate,and sand pressing flat plate;According to the accuracy level,the tablets are divided into 00,0,1,2,and 3 levels,with level 2 and above being the inspection tablets and level 3 being the marking tablets.The overall specification of the Cast Iron Surface Plate is 4 meters by 8 meters.If it is larger than this specification,multiple pieces can be spliced together.After wear and tear,it can be re scraped to restore its accuracy.The flatness of the parts can be inspected by painting method,which has the advantages of accuracy,intuitiveness,and convenience.Pushing the gauge seat and workpiece smoothly on the scraped cast iron flat plate without any rough feeling,facilitates measurement and improves measurement accuracy.In addition,we need to pay special attention to the fact that the working surface of the Cast Iron Surface Plate should not have rust,scratches,bumps,or other appearance defects that affect its use.

Inspection standards for Cast Iron Surface Plates:

Our inspection of Cast Iron Surface Plates mainly focuses on their flatness and flatness error,where flatness refers to the deviation of the macroscopic concave convex height of the substrate from the ideal plane.The tolerance zone is the area between two parallel planes at a distance of the tolerance value t.Flatness belongs to shape error in form and position error.Normally,we use the coloring method to inspect Cast Iron Surface Plates.The 0-level and 1-level tablet platforms shall have no less than 25 points within a range of 25 millimeters square on each side.The second level tablet platform shall have no less than 20 points within a range of 25 millimeters square on each side.The 3-level tablet platform shall have no less than 12 points within a range of 25 millimeters square on each side.

Material of Cast Iron Surface Plate:

The material is mainly cast iron,and the hardness of the HT200-250 working face is HB160-210.After two treatments(manual annealing at 600-700 degrees or natural aging for 2-3 years),the accuracy of the Cast Iron Surface Plate is stabilized and its performance is good.Carbon mainly exists in the form of flake graphite,with a gray fracture surface,abbreviated as gray iron.Low melting point(1145-1250℃),small shrinkage during solidification,compressive strength and hardness close to carbon steel,good shock absorption.Due to the presence of flake graphite,it has good properties.The casting performance and cutting processing are good,and its grade is marked with"HT"followed by two sets of numbers.

Technical Parameter:

SpecificationsAccuracy class μmSpecificationsAccuracy class μm
Level 0Level 1Level 2Level 3Fine planeLevel 0Level 1Level 2Level 3Fine plane

100×1004826  2500×2500  72180270
200×10051020  3000×1000   168248
200×20051020  3000×1500   174154
300×20061224  3000×2000   184275
300×30061224  3000×2500   186276
400×30061224  3000×3000   210300
400×40061224  4000×1000   210300
500×30061224  4000×1500   210300
500×50071428  4000×2000   219310
600×40071428  4000×2500   228340
600×50071428  4000×3000   240360
800×5008163280 5000×1500   249370
800×6008163280 5000×2000   255375
900×6008163280 5000×2500   264390
1000×7509183690 5000×3000   287420
1000×100010203996 6000×1500   287420
1200×1000 203996 6000×2000   293430
1500×1000 2448120 6000×2500   300450
1500×1500 2550125 6000×3000   308460
2000×1000 2652129 8000×1500   366500
2000×1500  56140 8000×2000   370520
2000×2000  601522308000×2500   375530
2500×1500  641522308000×3000   382570

Note:1. The values in the table are given according to the standard temperature of 20 ℃.2. In the formula in the table: D ---- diagonal length of flat plate working face, mm.3. The flatness tolerance within the range of 0.02A (maximum 20mm) from the edge of the working face is not counted, and any point shall not be higher than the working face.

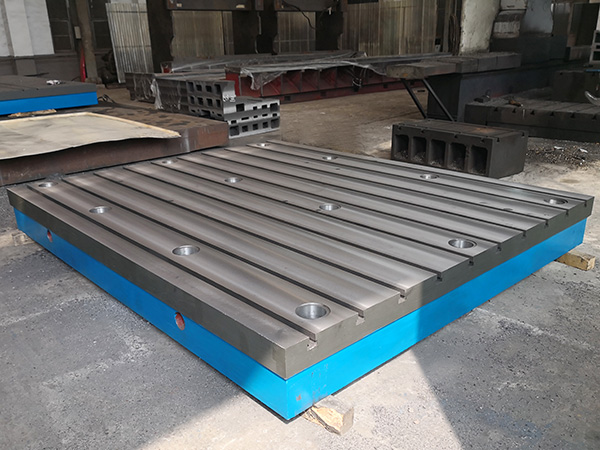

Layout PlateCast Iron T Slot Base PlateCoordinate Measuring Plate
