Octagonal Welding Table
Any size can be customized Specifications (LxWxH) 600x600x100mm； 600x600x200mm； 800x800x100mm； 800x800x200mm； 1000x1000x100mm； 1000x1000x200mm； 1200x1200x100mm； 1200x1......
PRODUCT DETAILS
| Any size can be customized | |

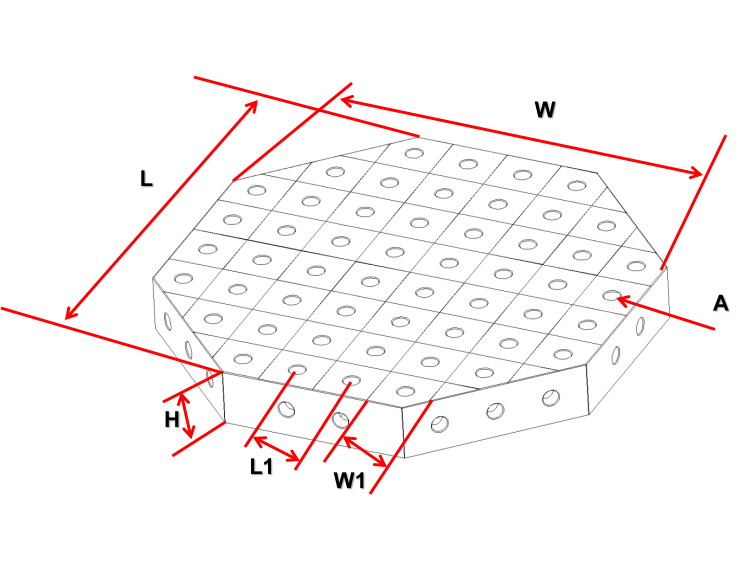

| Specifications (LxWxH) | |
| 600x600x100mm； | 600x600x200mm； |
| 800x800x100mm； | 800x800x200mm； |
| 1000x1000x100mm； | 1000x1000x200mm； |
| 1200x1200x100mm； | 1200x1200x200mm； |
| 1500x1500x100mm； | 1500x1500x200mm； |
| Material:B, Q355 steel plate welding, c, high hardness steel plate welding, d, stainless steel plate welding | |
| Aperture:A = φ28.065 -- φ28.149mm. | |
| Hole spacing:L1=100±0.05mm。 | |
| Engraved line:The scribe pitch W1 = 100±0.05mm. | |
| Flatness:0.1/1000mm。 | |
| Verticality:0.1/200mm。 | |
| Surface roughness:Ra3.2。 | |
| Bearing:Standard type 2T, frame type: 5T. | |
| Hardness:Hardness of material body and nitriding layer: HV450-HV630 | |
| Any size can be customized | |
| D16 Specifications (LxWxH) | |
| 1000x1000x50mm； | 2000x1000x50mm； |
| 1200x1200x50mm； | 2400x1200x50mm； |
| 1500x1500x50mm； | |
| Material:B, Q355 steel plate welding, c, high hardness steel plate welding, d, stainless steel plate welding | |
| Aperture:A = φ16.065 -- φ16.149mm. | |
| Hole spacing:L1=50±0.05mm。 | |
| Engraved line:The scribe pitch W1 = 50±0.05mm. | |
| Flatness:0.1/1000mm。 | |
| Verticality:0.05/200mm。 | |
| Surface roughness:Ra3.2。 | |
| Bearing:Standard type 2T, frame type: 5T. | |
| Hardness:Hardness of material body | |
 |
|
| Any size can be customized | |
| D22 Specifications (LxWxH) | |
| 1000x1000x200mm； | 2400x1200x200mm； |
| 1200x1200x200mm； | 3000x1500x200mm； |
| 1500x1500x200mm； | 4000x2000x200mm； |
| 2000x1000x200mm； | |
| Material:A, HT300 casting, B, Q355 steel plate welding, c, high hardness steel plate welding, d, stainless steel plate welding | |
| Aperture:A = φ22.065 -- φ22.149mm. | |
| Hole spacing:L1=100±0.05mm。L2=100±0.05mm。L3=50±0.05mm。L4=50±0.05mm。 | |
| Engraved line:The scribe pitch W1 = 100±0.05mm. | |
| Flatness:0.1/1000mm。 | |
| Verticality:0.1/200mm。 | |
| Surface roughness:Ra3.2。 | |
| Bearing:Standard type 2T, frame type: 5T. | |
| Hardness:Hardness of material body and nitriding layer: HV450-HV630 | |
 |
|
| Any size can be customized | |
| D28 Specifications (LxWxH) | |
| 1000 × 1000 × 200mm | 1500 × 1500 × 200mm |
| 1000 × 1500 × 200mm | 1500 × 2000 × 200mm |
| 1000 × 2000 × 200mm | 1500 × 3000 × 200mm |
| 1000 × 2500 × 200mm | 1200 × 2400 × 200mm |
| 1200 × 1200 × 200mm | 2000 × 3000 × 200mm |
| 1200 × 2400 × 200mm | 2000 × 4000 × 200mm |
| Material:A, HT300 casting, B, Q355 steel plate welding, c, high hardness steel plate welding, d, stainless steel plate welding | |
| Aperture:A = φ28.065 -- φ28.149mm. | |
| Hole spacing:L1=100±0.05mm。L2=100±0.05mm。L3=50±0.05mm。L4=50±0.05mm。 | |
| Engraved line:The scribe pitch W1 = 100±0.05mm. | |
| Flatness:0.1/1000mm。 | |
| Verticality:0.1/200mm。 | |
| Surface roughness:Ra3.2。 | |
| Bearing:Standard type 2T, frame type: 5T. | |
| Hardness:Hardness of material body and nitriding layer: HV450-HV630 | |
 |
|
 |
 |
 |
 |
 |
 |
